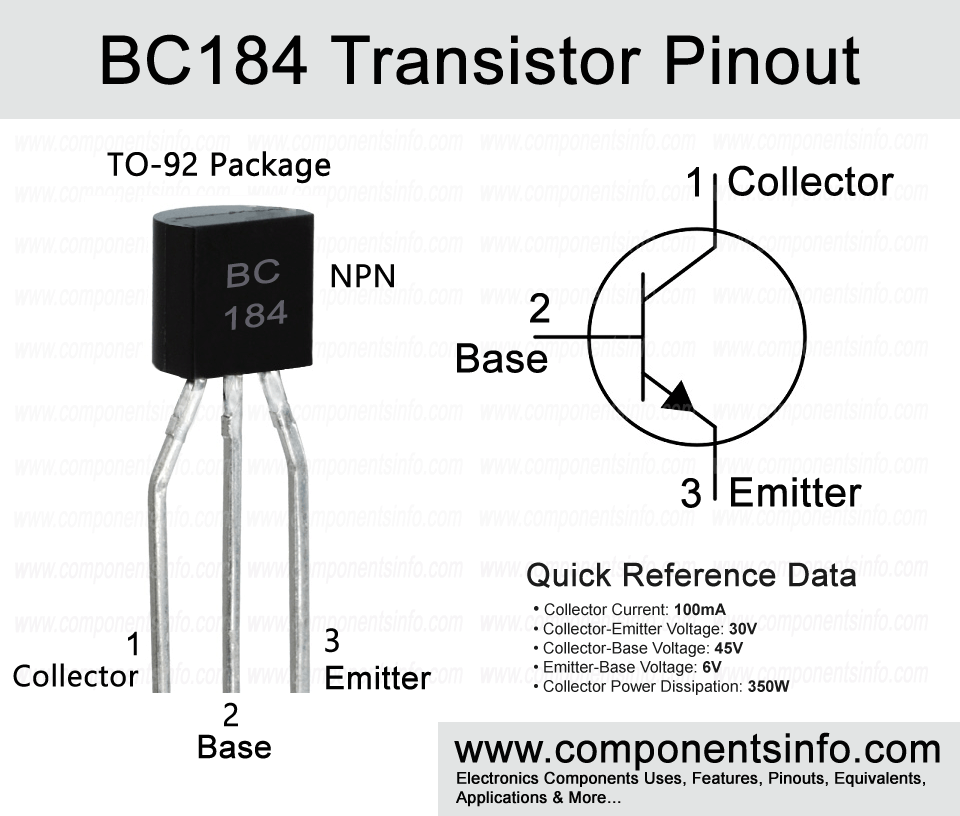

BC184 Transistor Pinout, Equivalents, Applications, Features and Other Useful Information

This post contains information about BC184 transistor such as its pinout, equivalents, applications, features, where and how to use it and other useful information.

Absolute Maximum Ratings:

• Package Type: TO-92
• Transistor Type: NPN
• Max Collector Current(I_C): 100mA
• Max Collector-Emitter Voltage (V_CE): 30V
• Max Collector-Base Voltage (V_CB): 45V
• Max Emitter-Base Voltage (V_EBO): 6V
• Total Device Dissipation (Pc): 350 milliwatt
• Max Transition Frequency (fT): 150 MHz (Minimum)
• Minimum & Maximum DC Current Gain (h_FE): 130 (Minimum)
• Max Storage & Operating temperature Should Be: -55 to +150 Centigrade



Replacement and Equivalent:

BC550, BC547, BC548, BC546, C945



BC184 Transistor Explained / Description:

BC184 is a TO-92 package NPN transistor designed to be used in general purpose applications. It contains many good features such as Low noise capabilities, good DC current gain and transition frequency of upto 150MHz etc.

It is a transistor of BC18x series which also contains BC182 and BC183 transistors. There is not much difference in these transistors and can be used in place of each other as substitutes.

Looking at the absolute maximum ratings of the transistor the collector-emitter voltage is 30V, collector current is 100mA, emitter-base voltage is 6V, collector-base voltage is 45V, collector dissipation is 350mW and storage and junction temperature is from -55°C to 150°C.



How to Use This Transistor:

This is a simple guide to understanding the concept of how to use this transistor. BC184 is an NPN BJT transistor so the using procedure is pretty much the same as we use any other BJT transistor by connecting its emitter pin with the negative pin of the circuit providing signal to the base pin and driving load from the collector pin in switch circuits and getting amplified output from the collector in amplifier circuits. This is a simple straight forward guide to use the transistor as a switch and an amplifier but for building these circuits you will also require passive components such as resistors and capacitors to use where required.



Applications:

Audio Preamplifier Circuits

Audio Amplifier Stages

Audio Amplifier Circuits

Battery Charger Circuits

Switching Circuits

Low Level Signal Amplification and Preamplification

Automotive Circuits

Darlington Pairs

Solar Circuits

Tx and Rx Circuits



Safe Operating Guidelines:

Here are some guidelines for safe operation of the transistor.

• Always use the transistor 20% below from its absolute maximum ratings.
• The maximum collector-emitter voltage is 30V but by following the above 20% rule we will only use 24V.
• The maximum collector current is 100mA but by following the above 20% rule we will only use 80mA.
• Always check the pin layout of the transistor before using the circuit.
• The storage and operating temperature should be between -55°C to 150°C.



Datasheet:

To download the datasheet just copy and paste the below link in your browser.

https://www.mouser.com/datasheet/2/149/BC184-888586.pdf
