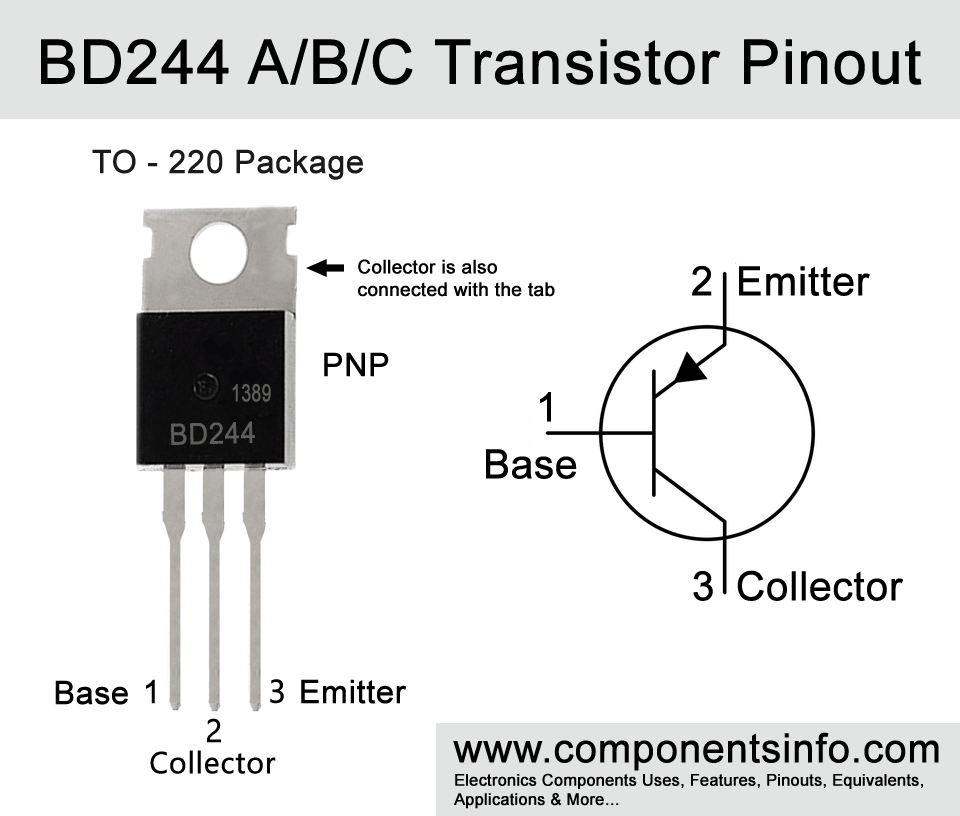

BD244 A/B/C Transistor Pinout, Equivalent, Applications, Features and Other Useful Details

BD244 is a PNP medium power transistor available in TO-220 package. Today we are going to understand BD244 A/B/C transistor pinout, equivalent, applications, features and other useful details.

Absolute Maximum Ratings:

• Package Type: TO-220
• Transistor Type: PNP
• Max Collector Current(I_C): –6A
• Max Peak Collector Current: -10A
• Max Collector-Emitter Voltage (V_CE): BD244= -45V, BD244A= -60V, BD244B= -80, BD244C= -100V
• Max Collector-Base Voltage (V_CB): BD244= -45V, BD244A= -60V, BD244B= -80, BD244C= -100V
• Max Emitter-Base Voltage (VEBO): 5V
• Max Collector Dissipation (Pc): 65 Watt
• Minimum DC Current Gain (h_FE): 15 TO 30
• Max Storage & Operating temperature: -65 to +150 Centigrade

NPN Complementary:

NPN Complementary of BD244/A/B/C is BD243/A/B/C

Replacement and Equivalent:

MJE15029, MJE15031, TIP137, TIP107, KSA1010, BDX54C, BDX34C, BDW94C, BDW74C, BDW48, BDW24C, BD902, BD652, BD546C, 2SB886, 2SB1626

BD244 /A/B/C Transistor Explained / Description:

BD244 transistor and its variations which are BD244, BD244A, BD244B, BD244C are medium power PNP transistor available in TO-220 package. These transistors are designed to be used in switching and amplifier applications and are available in four different variations, each variation has a different collector-emitter, collector-base, and collector-emitter sustaining voltage.

the absolute maximum ratings of the transistor are as follows:

The maximum collector current is -6A, max collector-emitter voltage of BD244 is -45V, BD244A is -60V, BD244B is -80 and BD244C is -100V. Same as the maximum collector-base voltage of  BD244 is -45V, BD244A is -60V, BD244B is -80 and BD244C is -100V. Max emitter-base voltage is 5V, max collector dissipation is 65 Watt, max junction temperature is 150 °C and max storage temperature is from -65 °C to 150 °C.

BD244 and its variations are designed to be used in switching and amplifier applications and all these variations can be used alternatively in applications that require voltage below -45V, but if your load requires more than that then you should select the one that suits your requirements.

Where We Can Use it & How to Use:

BD244 and its variations are general purpose devices designed to be used in switching and amplifier applications. Moreover, it is a BJT transistor so using procedure of the transistor is same as we use any other BJT transistor by providing a signal to its base, connecting its emitter with the positive supply, and driving load through its collector.

Applications:

Battery Chargers

BMS Applications

High Power Audio Amplifier Circuits

Driving or Switching Loads under 6A

Motor Drivers

Safe Operating Guidelines:

Here are the safe operating guidelines for the transistor.

• Always use the transistor 20% below from its absolute maximum ratings.
• So according to the above 20% rule, the maximum collector current is -6A but we will not drive load of more than 4.8A.
• Same as the maximum collector-emitter voltage of BD244 is -45V but we will not use more than 36V. The Max voltage of BD244A is 60V, but we will use a max 48V, BD244B is 80V but we will only 64V, and BD244C has max voltage of -100V, but we will only use 80V.
• A proper heatsink should always be used with the transistor.
• The pin layout should be checked before using it in the circuit.
• Always store or operate the transistor at temperatures above -65°C and below 150°C.

Datasheet:

To download the datasheet just copy and paste the below link in your browser.

https://www.mouser.com/datasheet/2/149/BD244A-31745.pdf
