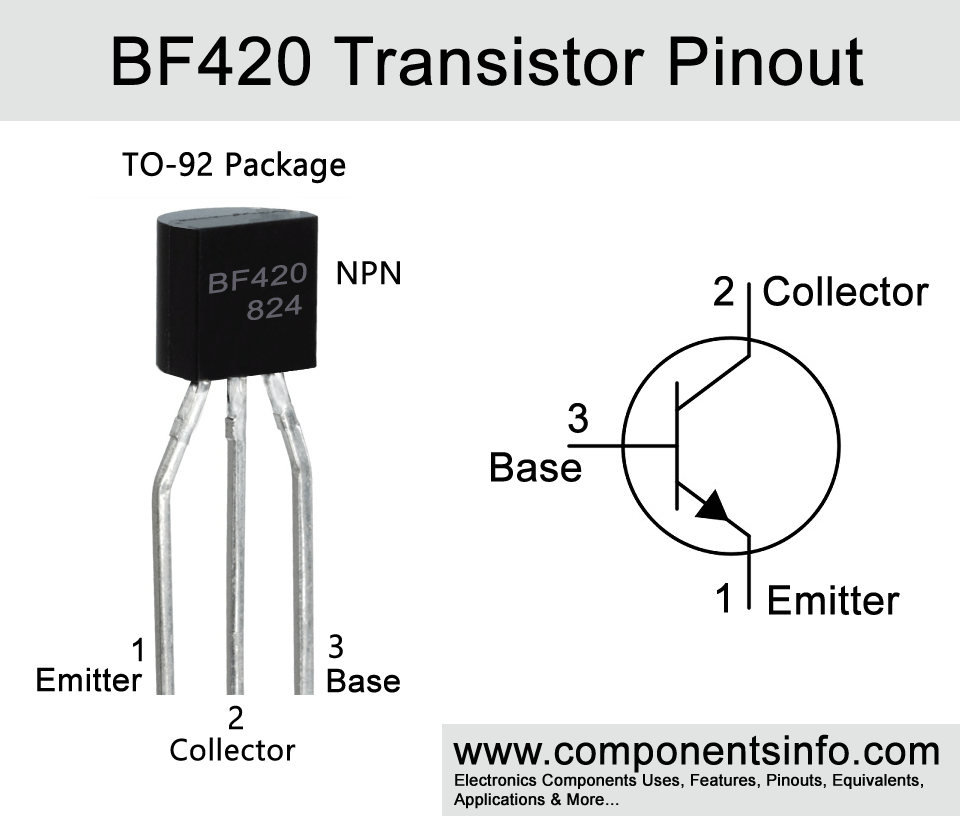

BF420 Transistor Pinout, Equivalent, Features, Applications and Other Useful Info

Are you looking for a high voltage and small current BJT transistor? then you might take look at BF420 transistor. This post covers BF420 transistor pinout, equivalent, features, applications and other useful info.





Features / Technical Specifications

• Package Type: TO-92
• Transistor Type: NPN
• Max Collector Current(IC): 50mA
• Max Collector-Emitter Voltage (VCE): 300V
• Max Collector-Base Voltage (VCB): 300V
• Max Emitter-Base Voltage (VBE): 5V
• Max Power Dissipation (Ptot): 830 Milliwatt
• Max Transition Frequency (fT): 60 MHz
• DC Current Gain (hFE): 50
• Max Storage, Operating & Junction temperature range: -65 to +150 Centigrade



PNP Complementary:

PNP complimentary of BF420 is BF421



Replacement and Equivalent

BF485, ZTX457, STX0560, 2SC4015



BF420 Transistor Explained / Description

Are you looking for a high voltage and small current BJT transistor then you might take look at BF420 transistor. It is an NPN transistor available in TO-92 package. The transistor has some good features such as it has collector-emitter voltage of upto 300V, this high collector-emitter voltage makes it ideal to use it in high voltage circuits. It also has low feedback capacitance feature which ensures enhanced performance of the transistor and the circuit in which it is used.

Looking at the maximum ratings of the transistor the maximum collector-emitter voltage is 300V, max collector-base voltage is also 300V, max emitter-base voltage is 5V, max collector current is 50mA, max transition frequency is 60MHz and maximum power dissipation is 830mW.

The transistor is designed to use in the video output circuitry of TV and monitors. But it is not limited to these uses and can be used in variety of other applications such as switching, oscillation, voltage regulation and signal processing etc. The detailed list of its applications is mentioned under the Applications heading below.



Where We Can Use it & How to Use

As already discussed above the transistor is designed to use in Class-B video output circuits of color TVs and also in monitors. But it is not limited to these uses and can be used in variety of other applications such as high voltage circuits, different types of amplification and switching circuits.

Using procedure of this transistor is same as we use any other BJT transistors by supplying negative voltage at its emitter, connecting load to its collector and using a suitable base resistors to provide required current at its base to control the output.



Applications

Class B Video Output Stages of TV and Monitors

Switching Circuits

Oscillators

Signal Processing Circuits

And many other general purpose and high voltage applications



Safe Operating Guidelines

The safely use the transistor it is important to not use the transistor on its absolute maximum ratings and stay 20% below. Therefore the maximum collector-emitter voltage is 300V so do not drive load of more than 240V, the maximum collector current of the transistor is 50mA therefore do not drive the load of more than 40mA and always store or operate the transistor at temperature above -65°C and below +150 °C.



Datasheet

To Download the datasheet just copy and paste the below link in your browser.

https://z3d9b7u8.stackpathcdn.com/pdf-down/B/F/4/BF420-ONSemiconductor.pdf
