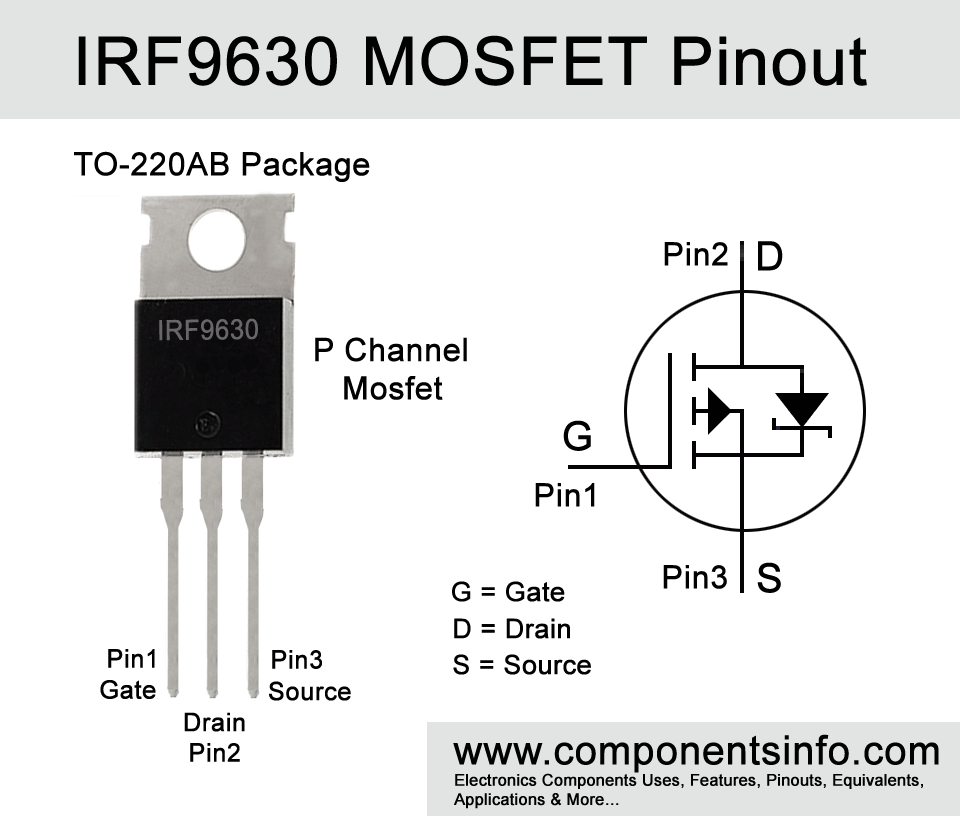

IRF9630 Pinout, Specifications, Equivalents, Applications and Other Details

IRF9630 is a P channel power MOSFET available in TO-220AB package. In this post we are going to discuss IRF9630 pinout, specifications, equivalents, applications and other useful information about this transistor.

Features / Technical Specifications:

• Package Type: TO-220AB
• Transistor Type: P Channel
• Max Voltage Applied From Drain to Source: 200V
• Max Gate to Source Voltage Should Be: ±10V
• Max Continues Drain Current is : -6.5A
• Max Pulsed Drain Current is: -26A
• Max Power Dissipation is: 74W
• Max Drain to Source Resistance in ON State (RDS on): 0.80Ω
• Max Storage & Operating temperature Should Be: -55 to +150 Centigrade

Replacement and Equivalent:

IRF9630PBF

IRF9630 MOSFET Explained / Description:

If you are looking for a P type MOSFET that can work on high voltage and is capable to drive load of upto

-6.5A and it also has low RDS(on) then IRF9630 is what you are looking for. The maximum drain to source voltage of the transistor is 200V, maximum continuous drain to source current is -6.5A, max pulsed drain current is -26A and max power dissipation is 74 Watts.

The MOSFET has many features such as simple drive requirements due to which it can easily be operated directly from ICs and microcontrollers output. It has nano seconds switching speed which is quite interesting and also makes it ideal to in applications where high speed is required. Other features are ease of paralleling, dynamic dv/dt ratings, repetitive avalanche rating etc. Applications in which this transistor can be used are motor controllers, power supplies, battery chargers etc. further applications will be found under the applications heading below.

Where and How to Use:

IRF9630 can be used for many purposes such as relay drivers, switching converters, switching regulators, high power circuits.  Moreover it can also be used in high power audio amplifiers.

Applications:

Switching Circuits

Power Supply Circuits

Battery Chargers Circuits

Battery Management Systems

Motor Controllers

Audio Amplifiers

And many more…

Safe Operating Guidelines / Absolute Maximum Ratings:

To correctly operate IRF9630 MOSFET and get long term performance with the device read and apply the given guidelines.

1. Do not operate the MOSFET to its absolute maximum ratings and stay 20% below.
2. Continuous drain current of the transistor is .-6.5A therefore do not drive load of more than 5.2A.
3. Maximum drain to source voltage is 200V so do not drive load of more than 160V.
4. Always use a proper heatsink with the transistor.
5. Always store or operate the MOSFET at temperatures above -55 °C and below +150 °C.

Datasheet:

To download the datasheet just copy and paste the below link into your browser.

https://cdn.datasheetspdf.com/pdf-down/I/R/F/IRF9630_InternationalRectifier.pdf
