IRFP064N Transistor Pinout, Equivalent, Applications, Features and More

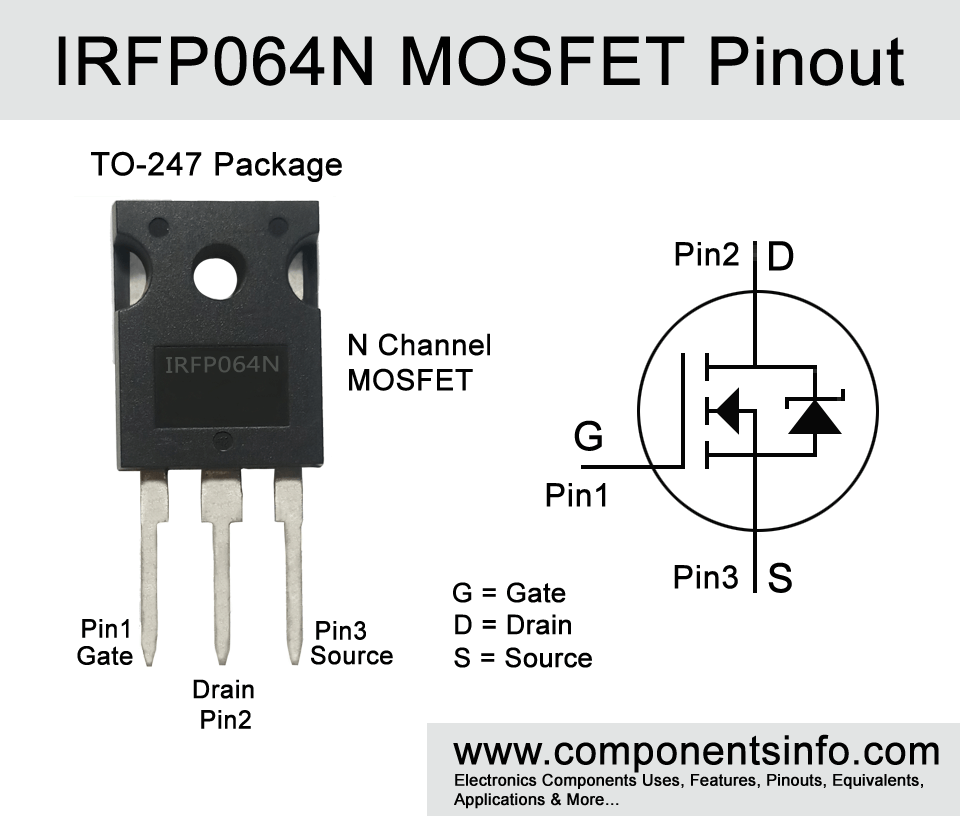

IRFP064N is a MOSFET device with many features. In this post we are going to discuss about IRFP064N transistor pinout, equivalent, applications, features and other useful details about this transistor.



Features / Technical Specifications:

• Package Type: TO-247
• Transistor Type: N Channel
• Max Voltage Applied From Drain to Source: 55V
• Max Gate to Source Voltage Should Be: ±20V
• Max Continues Drain Current is : 110A
• Max Pulsed Drain Current is: 390A
• Max Power Dissipation is: 200W
• Max Drain to Source Resistance in ON State (RDS on): 008Ω
• Max Storage & Operating temperature Should Be: -55 to +150 Centigrade



Replacement and Equivalent:

IRFP4568, IRFP4110, IRFP4368, IRFP3306, IRFP3077, IRFP2907, IRFP4468



IRFP064N Transistor Explained / Description:

IRFP064N is an N Channel metal oxide semiconductor field effect transistor or MOSFET. It is available in TO-247 package and has many features. It is a ruggedized device and also very reliable and efficient transistor due to which it can perform well in wide variety of applications. It can be used to circuits which are designed to use industrial purposes.

The transistor has many good features which makes this device very reliable to use in commercial applications such as



High Switching Speed:

The transistor possesses high switching which makes it quite crucial component for applications where high speed switching is necessary.



Ultra Low On-Resistance:

The ultra low ON resistance between drain to source of the transistor ensures less heat generation when the transistor is in ON state and load is connected to it.



Fully Avalanche Rated:

It is fully avalanche rated so it can withstand when the voltage from its drain to source reaches above it actual limits.



Operating Temperature is Upto 175°C:

Another good feature of the transistor is that it has maximum operating temperature of +175°C. This is also a very important and useful feature.

The other features of the transistor are advance process technology, dynamic dv/dt rating etc.



The technical specs of the transistor are quite interesting the maximum continuous drain current of the transistor is 110A, the maximum pulsed drain current is 390A, maximum drain to source voltage of the transistor is 55V and the total dissipation is 200 Watts.



Where We Can Use it & How to Use:

This transistor can be used in wide variety of applications. The maximum continuous drain current is upto 110A due to which it can drive variety of high current loads in electronic circuits.



Applications:

Power Supplies

Motor Driver Applications

Uninterruptible Power Supplies

DC to DC converters

Solar Power Supplies

Solar Chargers

BMS Circuits

Battery Charger Circuits

Inverter Circuits



Safe Operating Guidelines / Absolute Maximum Ratings:

For long term and good performance the device should not reach its absolute maximum ratings. To get good performance the device should be used 20% below from its maximum ratings. The maximum continuous drain current of the transistor is 110A therefore do not drive load of more than 88A. The maximum drain to source voltage is 55V therefore do not drive load of more than 44V. Use a suitable heatsink with the transistor and do not store or operate the transistor at temperature below -55°C and above +170 °C.



Datasheet:

To Download the datasheet just copy and paste the below link in your browser.

https://cdn.datasheetspdf.com/pdf-down/I/R/F/IRFP064N_PowerMOSFET.pdf
