TL074 IC Pinout, Features, Equivalents, Usage and More
In this post we will discuss about TL074 IC features, equivalents, usage, pinout, applications and where and how you can use this IC in your design and projects.
TL074 IC Features / Technical Specifications
- Low current consumption
- Low noise and low distortion circuitry
- Short circuit protection at the output
- JFET used at the input
- Free from latch-up
- Fast slew rate
- Four similar operational amplifiers in a single package
- Wide operating voltage from 6V to 36V
- Very low harmonic distortion
- Quiescent current is only 1.4mA to 2.5mA
- Low cost and reliable
- 10mA output current

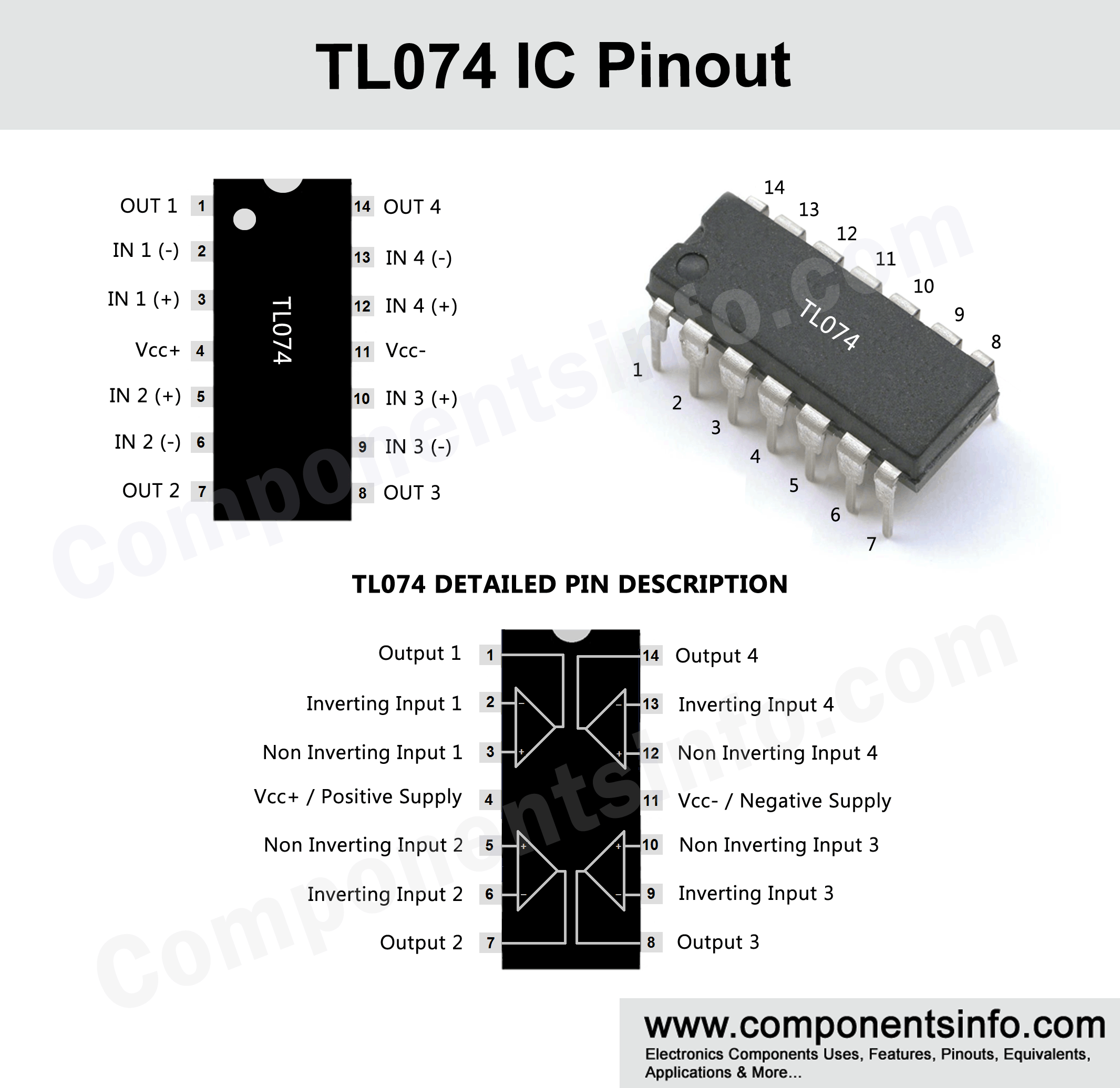

TL074 IC Pin Configuration
| Pin# | Pin Name | Pin Description |
|---|---|---|
| 1 | Output 1 | Output of IC's First Operational Amplifier |
| 2 | Input1(-) / Inverting Input 1 | Inverting Input of IC's First Operational Amplifier |
| 3 | Input1(+) / Non Inverting Input 1 | Non Inverting Input of IC's First Operational Amplifier |
| 4 | Vcc+ | Positive Supply of IC / Positive Supply of All Operational Amplifiers. |
| 5 | Input2(+) / Non Inverting Input 2 | Non Inverting Input of IC's Second Operational Amplifier |
| 6 | Input2(-) / Inverting Input 2 | Inverting Input of IC's Second Operational Amplifier |
| 7 | Output 2 | Output of IC's Second Operational Amplifier |
| 8 | Output 3 | Inverting Input of IC's Third Operational Amplifier |
| 9 | Input3(-) / Inverting Input 3 | Inverting Input of IC's Third Operational Amplifier |
| 10 | Input3(+) / Non Inverting Input 3 | Output of IC's Third Operational Amplifier |
| 11 | Vcc- | Ground / Negative Supply of IC / Negative Supply of All Operational Amplifiers. |
| 12 | Input4(+) / Non Inverting Input 4 | Non Inverting Input of IC's Forth Operational Amplifier |
| 13 | Input4(-) / Inverting Input 4 | Inverting Input of IC's Fotrh Operational Amplifier |
| 14 | Output 4 | Output of IC's Forth Operational Amplifier |
TL074 Description
TL074 is an IC of TL07X family. TL07X family contains other single and dual op-amps which are TL071 and TL072. The TL071 contains one op amp inside and TL072 contains two separate identical operational amplifiers. TL074 contains 4 separate operational amplifiers inside which all are identical. The IC is available in 14 pin plastic DIP package. The total number components in these four op amps are 56 transistors, 6 JFET, 4 epi-FET, 44 resistors, 4 diodes and 4 capacitors.
Like other ICs in this family TL074 also contains same features like low input bias current, high slew rate, low current consuming circuitry, free from latchup etc. The quiescent current in no load condition is only 1.4mA to 2.5mA. Each op amp consists JFET at the input which cancels most of the noise from the signal and hence supply clean and low noise signal to the internal circuitry, these low noise capability makes this IC ideal to use in wide variety of audio applications. The IC is also THD (Total Harmonic Distortion) free which is useful if it is used in audio preamplifier applications.
Applications
Audio preamplifiers
Inverters
Solar applications
UPS
Oscilloscopes
Oscillators
Voltage comparator Circuits
Replacement and Equivalent / Other Part Numbers
TL071 and TL072 are the exact matched equivalent ICs which contain similar op-amp as the TL074. If you can’t find TL074 then you can use four TL071 or 2 TL072 in the place of one TL074. LM324 can also be used as an equivalent of TL074 and you can also use two LM358 ICs. Moreover, the LM837 and two NE5532 can also be used as an alternative to TL074.
Application Circuit

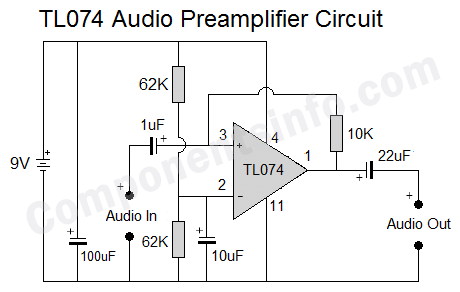

This is a circuit of an audio preamplifier circuit using TL074 IC. As mentioned above TL074 is a quad op amp IC hence there are 4 operational amplifiers inside but we have used only one in this circuit. The operating voltage of the circuit is 9V DC.
Safe Operating Guidelines / Absolute Maximum Ratings
Each component has a limit and usage guidelines, operating a component above these limits can cause permanent damage to the component or shorten its lifespan therefore it is also important to know about the absolute max ratings of each component before using it in your circuit or design.
Operating Voltage: The maximum operating voltage of supply voltage of the IC when using a dual power supply is ±18 and when operating with a single supply the max supply voltage should not be more than 36V.
Maximum Input Differential Voltage: The max input differential voltage of the IC should not be more than ±30.
Maximum Power Dissipation: Max power dissipation is 680 milliwatt. It means the amount of heat this IC can handle and when it reaches to 680mW its temperature will go to 150 degrees centigrade.
Storage and Operating Temperature: The storage temperature of the IC is -65 degrees centigrade to +150 degrees centigrade and the operating temperature is differentiated by suffixes, the ICs package that has “C” after the part number can be operated from 0° Celsius to 70° Celsius, the package that has “I” at the end of part number can be operated from 40° Celsius to 85° Celsius and the package that have “M” after the part number can be operated from -55° Celsius to +125° Celsius.
Datasheet
To download the datasheet just copy and paste the below link in your browser.
https://cdn.datasheetspdf.com/pdf-down/T/L/0/TL074_STMicroelectronics.pdf
